Original INNOLUX 7 inch wide temperature 800x480 high brightness TN LCD panel (AT070TN94)

AT070TN94 is INNOLUX brand 7 inch tft lcd with wide working temperature of -30~80℃.We have regualr stock in HK warehouse. Latest version is with fitipower IC EK79713 and EK73202 changed from Novatek IC NT39419BH and NT52001H. New version sample is available. MOQ:500pcs Shipment port:Shenzhen/HK Trade term:EXW Shenzhen/HK

Specification parameters

AT070TN94 is INNOLUX original 7 inch TN panel with wide working temperature and storage temperature of -30℃~85℃.

AT070TN94 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a backlight unit.

This 7 inch display is having the outline dimension of 164.9(W) x100(H) x5.7(D)mm and AA size of 154.08 (W) × 85.92(H) mm,resolution is 800x480.

Last year in March due to the EOL of Novatek IC NT39419BH and NT52001H,INNOLUX has transferred to fitipower IC EK79713 and EK73202 in MP of 2022 H2. New version of sample is available,welcome to check with us for sample test and verify.

Trade term:EXW Shenzhen/HK

MOQ:500pcs

Lead time:In stock,deliver at anytime as you wish

Packing information:50pcs/carton

Carton dimension:52.5x32.6x25cm.

Gross weight:10.65Kg



Parameter

Brand INNOLUX
P/N AT070TN92
Size 7"(TN)
Display mode TN,Transmissive,normally white
Resolution 800X480
Aspect ratio 16:9
Outline Dimension(mm) 164.9(W) x100(H) x5.7(D)
Active Area(mm) 154.08 (W) × 85.92(H)
Brightness(cd/m²) 400cd/㎡
Viewing Angle(L/R/T/B) 70/70/50/70
Interface 50pin RGB,Parallel 24bit
Constrast ratio 500:1
Operation Temp -30℃~85℃
Storage Temp. -30℃~85℃
Backlight White LED
Application handheld terminals,testing machine,electric bicycle,office printer

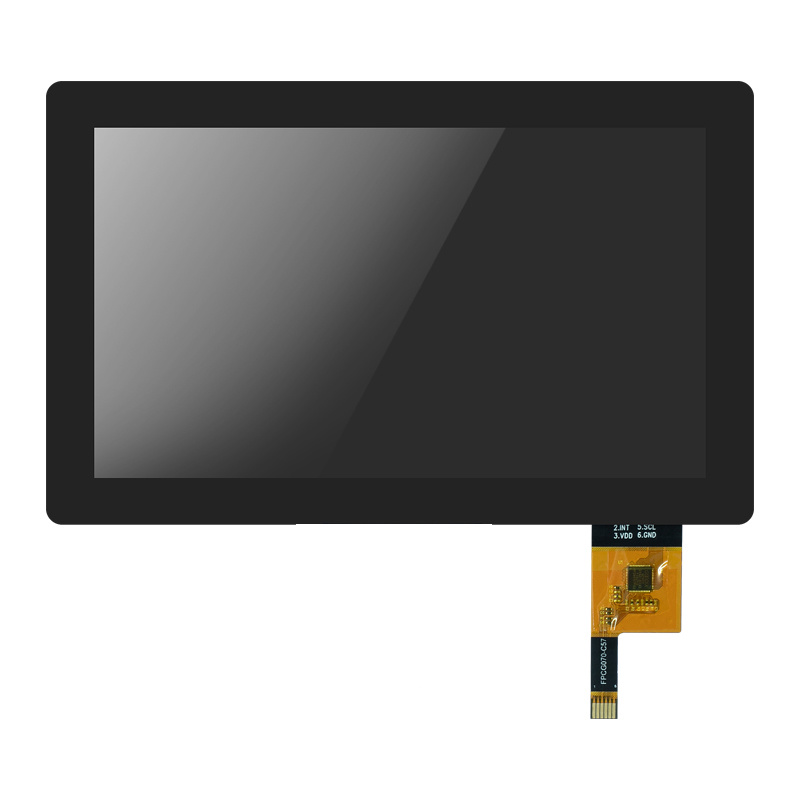

Touch panel option

Bonding Type:Air Bonding/OCA bonding
Structure:G+G
Touch IC:GT911
Glass thickness:0.7mm
Transparency:≧86%
Surface Hardness:≧6H
Touch Interface: I2C
Allow Touch Points:10 points



 PIN  Assignment
1 RST
2 INT
3 VDD
4 SDA
5 SCL
6

GND

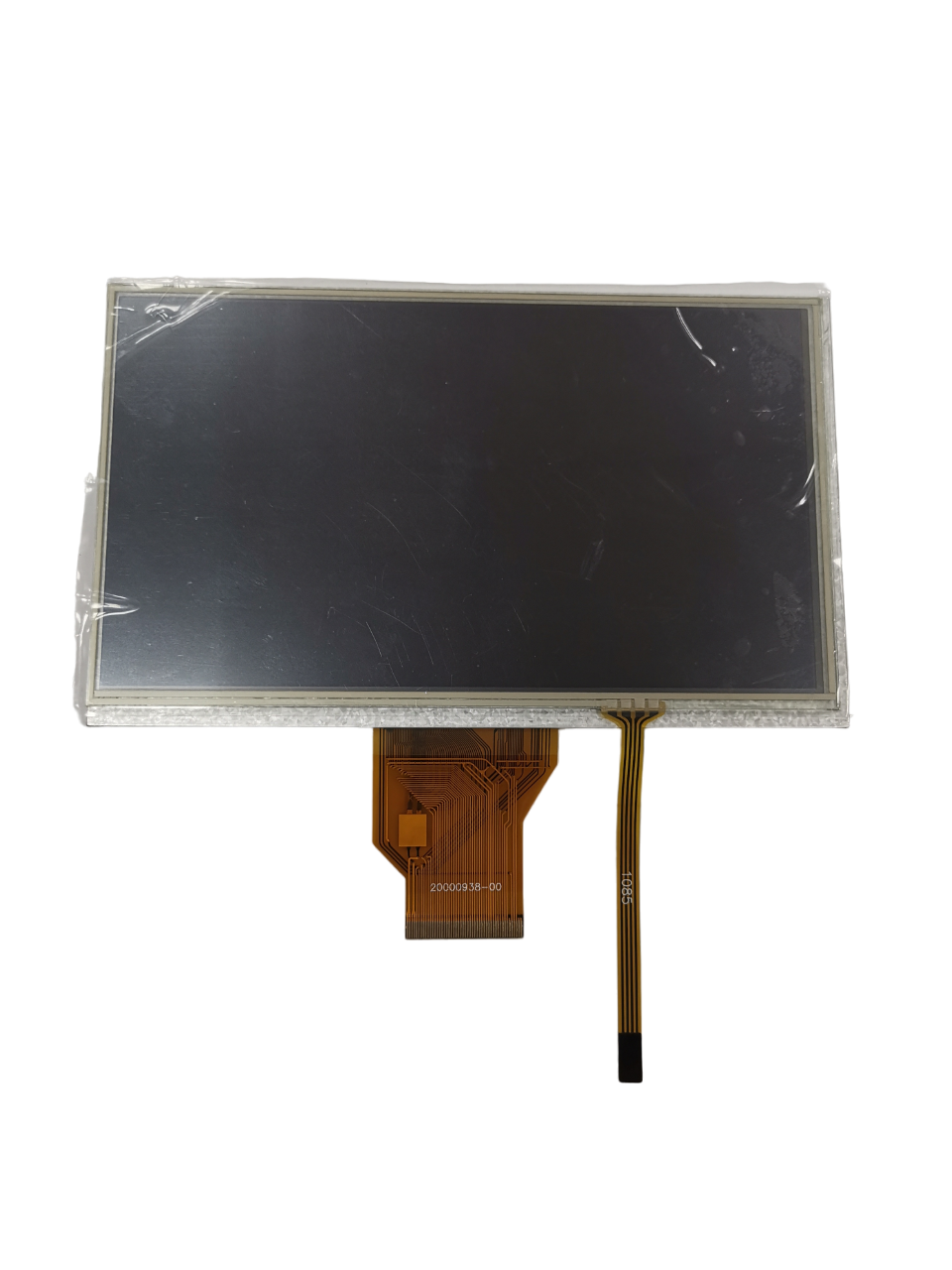

4Wire resistive touch panel

Pin Assignment
1 Y1
2 X2
3 Y2
4 X1



Bonding option

Air bonding

OCA bonding




FAQ
What kind of environment need to use High Brightness Panel?
Differ from the brightness of traditional panels.
It allows the user to see the display under strong sunlight which enables operation under special conditions.
Like industries such as parking lot, industries, transportation, military etc…


Does the panel’s brightness be adjusted automatically according to the environment?
It can be combined with our DB-LD0D, which built-in the light sensor function.
Where does the panel brightness enhance done?
We have our own class 1,000 clean room.
Because of strict process and quality control, which increases the reliability of our products and
meets fast delivery for you.


Is there any similar products for replacement?
Yes,we have four similar model for your reference

Model Size Panel type  Resolution Outline dimension(mm) Active area(mm) Brightness Interface
AT070TN92 7"

TN

800X480 164.9(W) x100(H) x5.7(D) 154.08 (W) × 85.92(H) 250nits 50pin RGB
HC070TG45057-21 7" TN 800X480 164.9(W) x100(H) x5.7(D) 154.08 (W) × 85.92(H) 450nits 50pin RGB
HC070TG45057-22 7" TN 800X480 164.9(W) x100(H) x5.7(D) 154.08 (W) × 85.92(H) 450nits 50pin RGB


How long is the product warranty?
One year of warrany regardless of the damage by incorrect operation.
