10.1 inch 1024x600 capactive touch HDMI display(HCIK101V.CC)

Enquiry

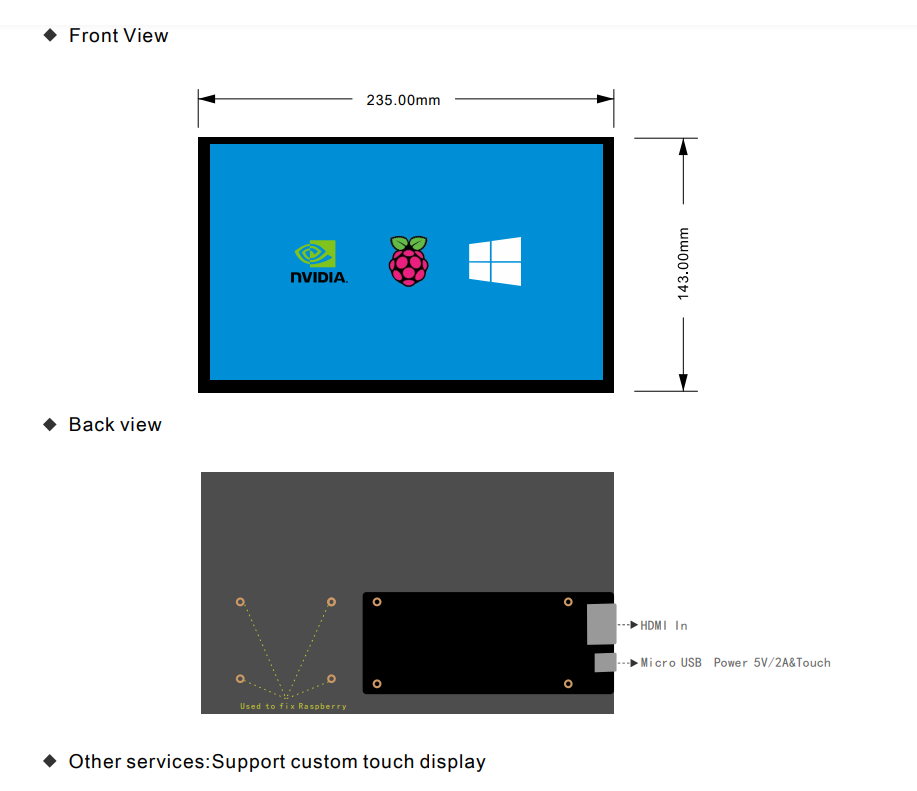

Specification parameters

10.1 inch display raspberry pi consist of LCD,capacitive touch panel,HDMI driver board.It can connect with any motherboard with HDMI and USB interface like raspberry pi2,raspberry3,raspberry pi4,Orange Pi Zero2,Orange Pi 3 LTS,Orange Pi 4 LTS,Orange Pi 5,BananaPi BPI-M2S ,Banana Pi BPI-M5,Banana Pi BPI-M6.

Function of HDMI display:

Time-effective

Save time for engineer to design PCB and check whether the lcd matches with motherboard.

Labor-effective

Easy to use,plug and play,even end-user can use it easily.

Wide application

Industrial use,Kiosk,public transport ticket validator,coffee,smart home,minging rig........

LCD type	IPS,normally black
Size	10.1"
Resolution	1024x600
Viewing angle	178°
Touch panel	capacitive touch panel(multi-point touch)
Brightness	250cd/㎡
Interface	HDMI,Micro-USB
Voltage	5V 2A
Support system	Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi

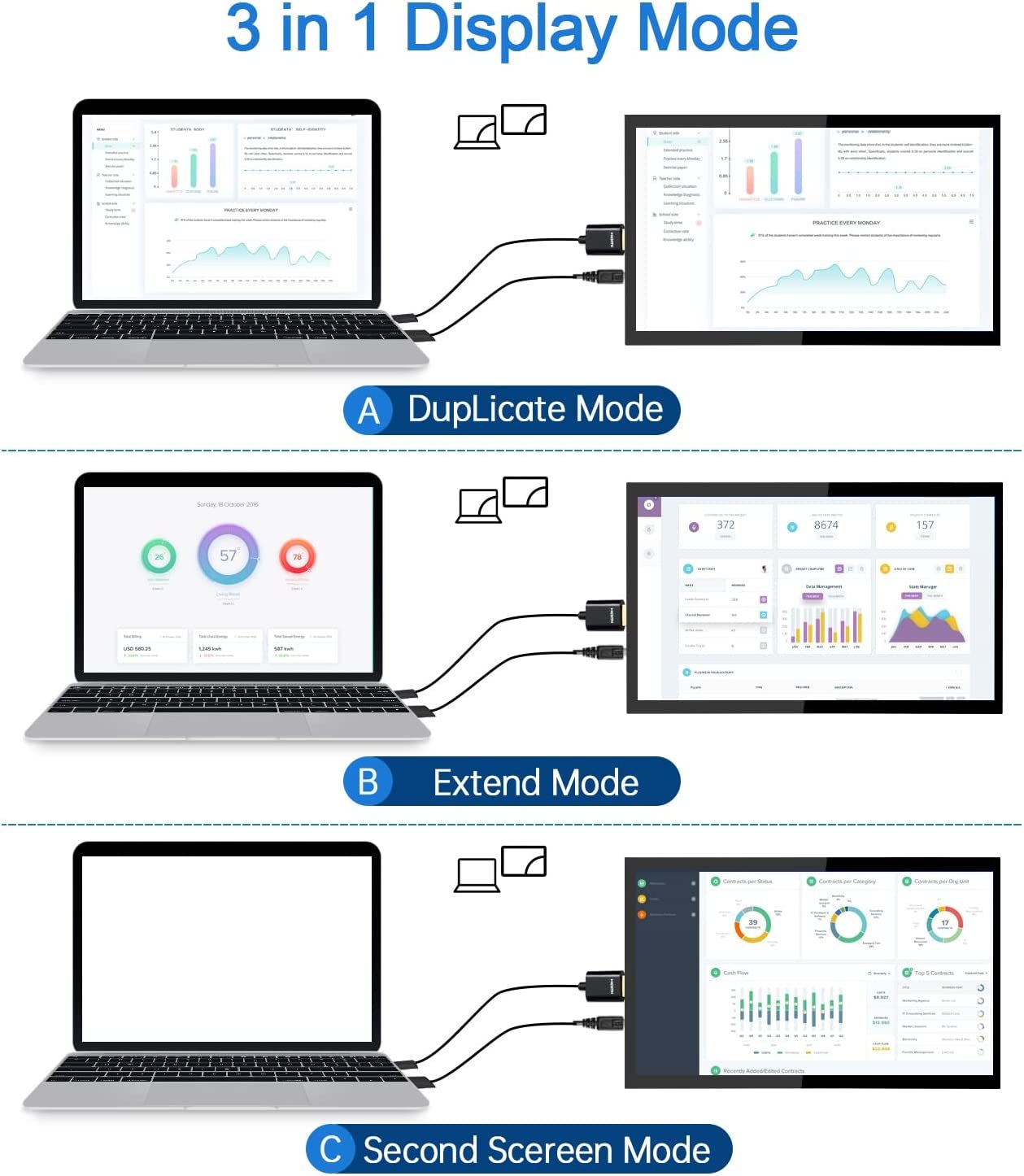

How could the end-user use the 10.1 HDMI touch screen?

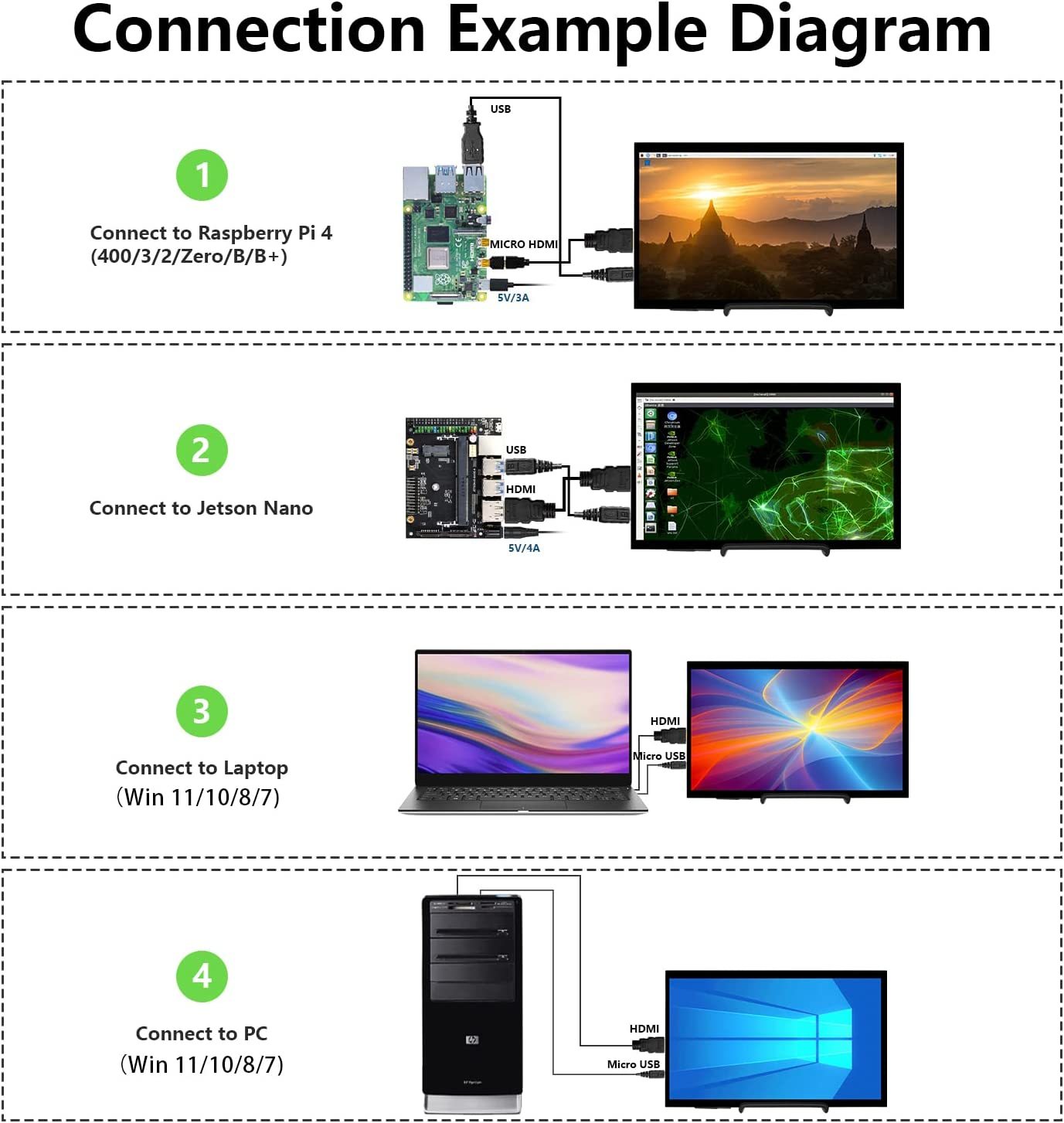

How to connect with motherboard like rasperry pi?

FAQ
1.What kind of environment need to use High Brightness Panel?
For standard brightness,it is suitable for using indoor.If the display are planned to use outdoor,pls contact us for customization for enhancing the brightness and update the configuration technique of touch panel like AR,AG,AF.

2.Does the panel’s brightness be adjusted automatically according to the environment?
For our standard HDMI display series,it doesn't support this function.But we have customzied project which allows PWM function by adjusting brightness through touch function.

3.Is there any other size of the HDMI display series?
Yes,we have 5 inch,7 inch hdmi display,8 inch,9 inch,10.1 inch HDMI display with speaker,15.6 inch with HDMI display solution.

Model	Size	Panel type	Resolution	Outline dimension(mm)	Active area(mm)	Brightness	Interface	Touch
HCIG050V.CP1	5"	IPS	800X480	164.9(W) x100(H) x5.7(D)	154.08 (W) × 85.92(H)	250nits	HDMI	PCAP
HCTG070V.P01	7"	TN	800X480	164.9(W) x100(H) x5.7(D)	154.08 (W) × 85.92(H)	250nits	HDMI	NA
HCIK070V.CA	7"	IPS	1024X600	164.9(W) x100(H) x5.7(D)	154.08 (W) × 85.92(H)	250nits	HDMI	PCAP
HCTG080V.CP1	8"	TN	800x480			250nits	HDMI	PCAP
HCIK090V.CC	9"	IPS	1024x600			250nits	HDMI	PCAP
HCIP101V.CP	10.1	IPS	1280X800			250nits	HDMI	PCAP
HCIV15601	15.6	IPS	1920x1080	366x230x14.5		250nits	HDMI	PCAP

4.What certificate this display has?

Hengcheng electronics is national High-tech manufacturer with ISO14001,ISO9001,IATF16949 certificate.

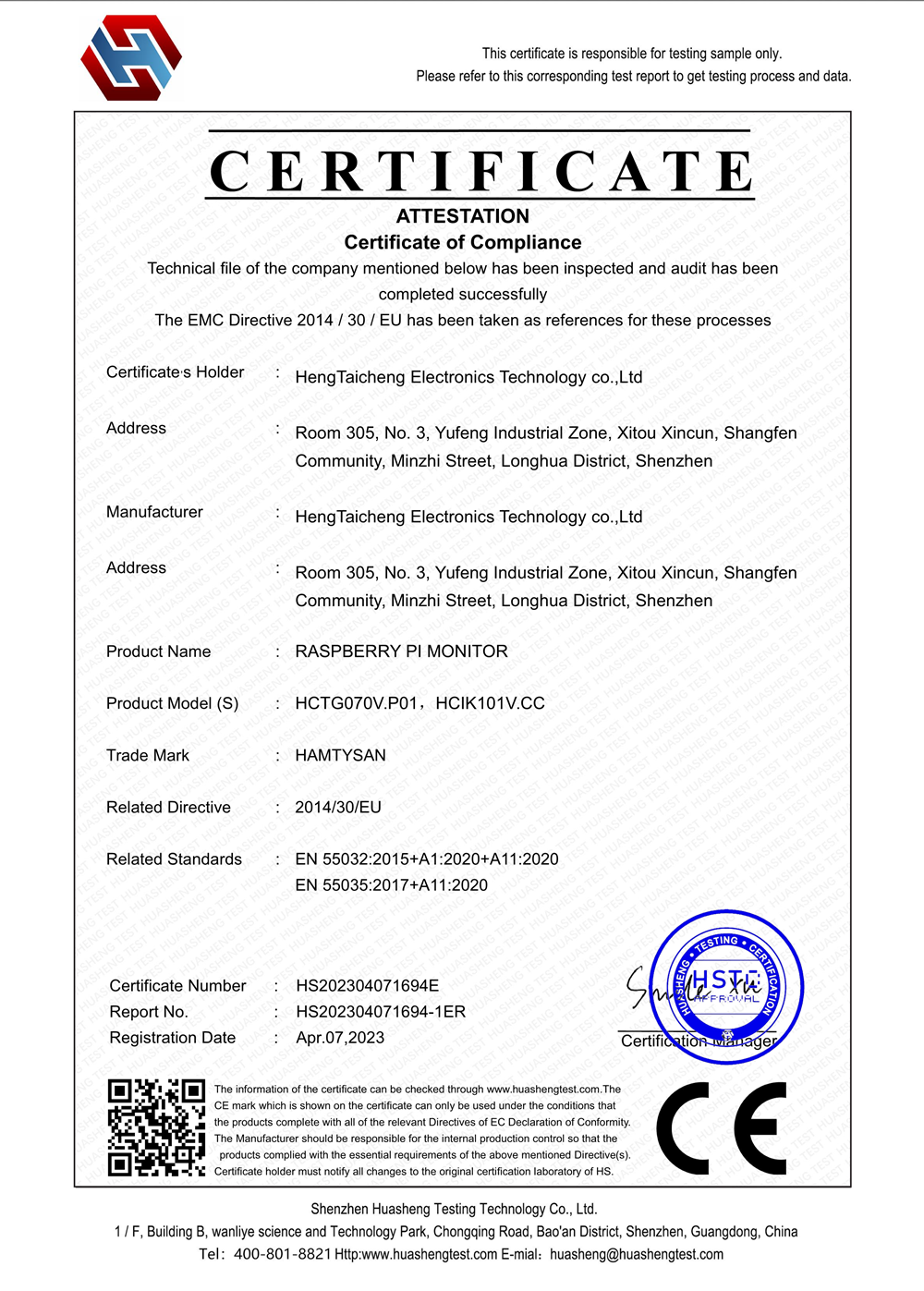

For this 10.1 HDMI Screen Display,CE certificate is available.

5.How long is the product warranty?
One year of warrany regardless of the damage by incorrect operation.

HC-HCIK101V.CC (1024x600) Raspberry Pi Display Specificatio V1.0.pdf

HCIK101 V.CC.pdf
