7 inch IPS 280x1424 bar type LCD touch screen for infusion System( HC070IX35035-D39V.C)
Specification parameters
HC070IX35035-D39V.C, a standout 7-inch LCD touch screen display module that marries advanced technology with exceptional performance. This module is equipped with an IPS display mode, ensuring accurate color representation and wide viewing angles for an unparalleled viewing experience. Encased within a compact frame of 38.2mm×181.5mm×3.45mm, this module provides a rich active viewing area of 33.6mm×170.88 mm. Experience striking detail on the 280x1242 pixel resolution display that can exhibit up to 262K colors, creating a vibrant and immersive user experience. The HC070IX35035-D39V.C is optimized for efficient data transmission with its 40PIN MIPI interface. With a luminous brightness level of 450 nits, this display remains clear and radiant under a wide array of lighting conditions. At the heart of this module is a projected capacitive touch screen, built with a sturdy glass+glass structure. The HC070IX35035-D39V.C is ideal for embedded systems and handheld devices. This touch screen display module exemplifies the potent combination of practical design and innovation, making it the superior choice for excellent visual interaction.
| Brand | Hetech |
| P/N | HC070IX35035-D39V.C |
| Size | 7"(IPS) |
| Display mode | IPS,Transmissive,normally black |
| Resolution | 280x1424 |
| Aspect ratio | ＜1:5 |

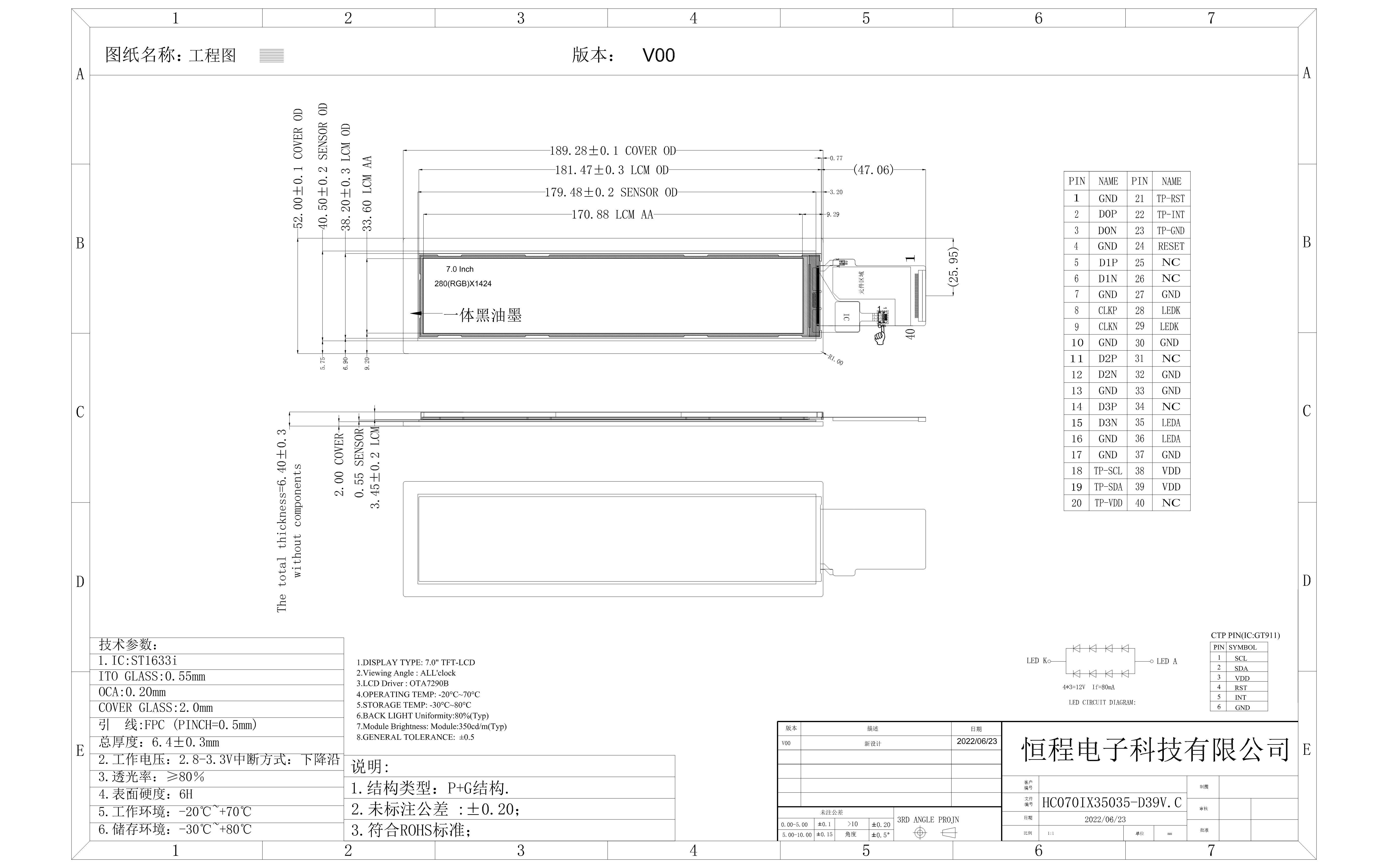

| Outline Dimension(mm) | 38.2(W) ×181.5(H) ×3.45(D) |
| Active Area(mm) | 33.6(W) ×170.88 (H) |
| LCD driver IC: | OTA7290B |
| Brightness(cd/m²） | 450cd/㎡ |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 4LANE MIPI(40pin) |
| Constrast ratio | 900:1 |
| Touch panel | capactive touch panel |
| I2C interface(6pin) | |
| Driver IC:ST1633i | |
| Operation Temp | -20℃~70℃ |
| Storage Temp. | -30℃~80℃ |
| Backlight | White LED |
| Application |
smart home,smart kitchen,range hook,broadcast encoder,transmissores FM |
