Specification parameters
8 inch display raspberry pi consist of LCD,capacitive touch panel,HDMI driver board.It can connect with any motherboard with HDMI and USB interface like raspberry pi2,raspberry3,raspberry pi4,Orange Pi Zero2,Orange Pi 3 LTS,Orange Pi 4 LTS,Orange Pi 5,BananaPi BPI-M2S ,Banana Pi BPI-M5,Banana Pi BPI-M6.
Function of HDMI display:
- Time-effective
Save time for engineer to design PCB and check whether the lcd matches with motherboard.
- Labor-effective
Easy to use,plug and play,even end-user can use it easily.
- Wide application
Industrial use,Kiosk,public transport ticket validator,coffee,smart home,minging rig........
| LCD type | TN,normally white |
| Size | 8" |
| Resolution | 800x480 |
| Viewing angle | 70/70/50/70 |
| Touch panel | capacitive touch panel(multi-point touch) |
| Brightness | 500cd/㎡ |
| Interface | HDMI,Micro-USB |
| Voltage | 5V 2A |
| Support system | Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |

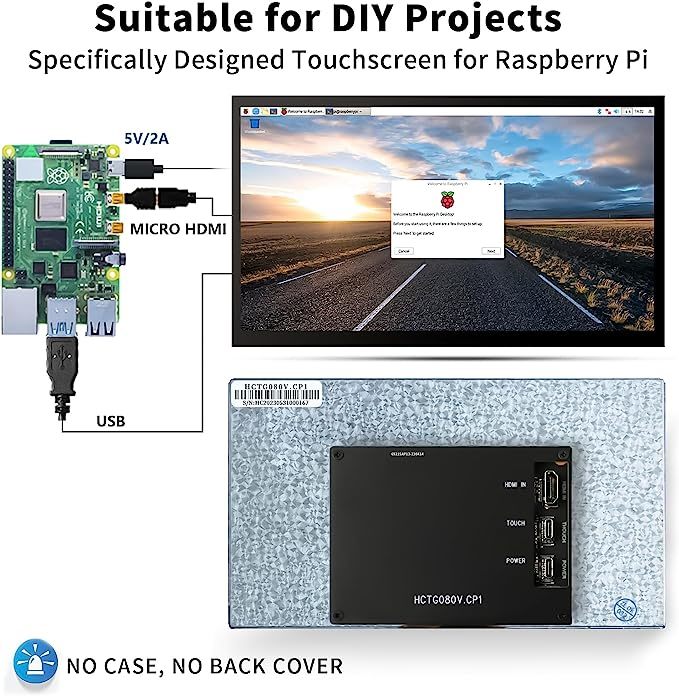

How to connect with motherboard like rasperry pi?
FAQ
1.What kind of environment need to use High Brightness Panel?
For standard brightness,it is suitable for using indoor.If the display are planned to use outdoor,pls contact us for customization for enhancing the brightness and update the configuration technique of touch panel like AR,AG,AF.
2.Does the panel’s brightness be adjusted automatically according to the environment?
For our standard HDMI display series,it doesn't support this function.But we have customzied project which allows PWM function by adjusting brightness through touch function.
3.Is there any other size of the HDMI display series?
Yes,we have 5 inch,7 inch hdmi display,9 inch,10.1 inch HDMI display with speaker,15.6 inch with HDMI display solution.
| Model | Size | Panel type | Resolution | Outline dimension(mm) | Active area(mm) | Brightness | Interface | Touch |
| HCIG050V.CP1 | 5" |
IPS |
800X480 | 164.9(W) x100(H) x5.7(D) | 154.08 (W) × 85.92(H) | 250nits | HDMI | PCAP |
| HCTG070V.P01 | 7" | TN | 800X480 | 164.9(W) x100(H) x5.7(D) | 154.08 (W) × 85.92(H) | 250nits | HDMI | NA |
| HCIK070V.CA | 7" | IPS | 1024X600 | 164.9(W) x100(H) x5.7(D) | 154.08 (W) × 85.92(H) | 250nits | HDMI | PCAP |
| HCTG080V.CP1 | 8" | TN | 800x480 | 500nits | HDMI | PCAP | ||
| HCIK090V.CC | 9" | IPS | 1024x600 | 500nits | HDMI | PCAP | ||
| HCIP101V.CP | 10.1 | IPS | 1280X800 | 250nits | HDMI | PCAP | ||
| HCIV15601 | 15.6 | IPS | 1920x1080 | 366x230x14.5 | 250nits | HDMI | PCAP |
4.How long is the product warranty?
One year of warrany regardless of the damage by incorrect operation.
